IT and Baropodometry Equipment
Win Track

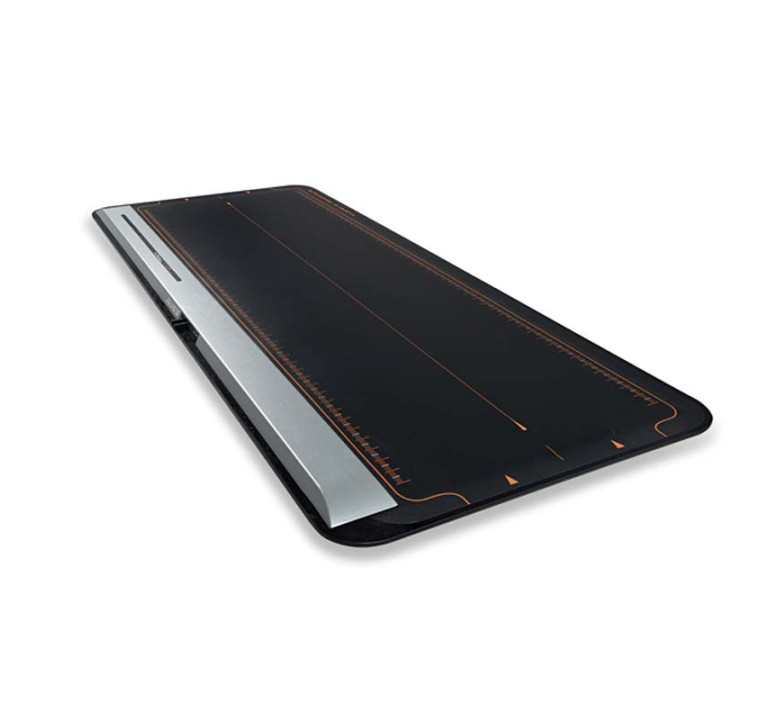

The WIN-TRACK is a dynamic multi-step acquisition platform
Description
This plantar pressure platform can be used to record and analyse multiple steps, ranging from 2 to 4. Additionally, it can record conventional statistical and posturographic data.
It also boasts the following technical characteristics:
- Depth: 9 mm
- Dimensions: 1,610 mm x 652 mm x 30 mm
- Detection area: 1,500 mm x 500 mm
- Weight: 11.8 kg
- Sensors: HD resistive
- Sensor size: 0.78 cm x 0.78 cm
- Number of sensors: 12,288
- Pressure: 0.4 to 100 N
- Temperature: 0 °C to 85 °C
- PC/platform interface: USB 2.0
- Sampling rate: 200 Hz
- Required operating systems: Windows XP, Vista, Seven
